ModeCW
Product

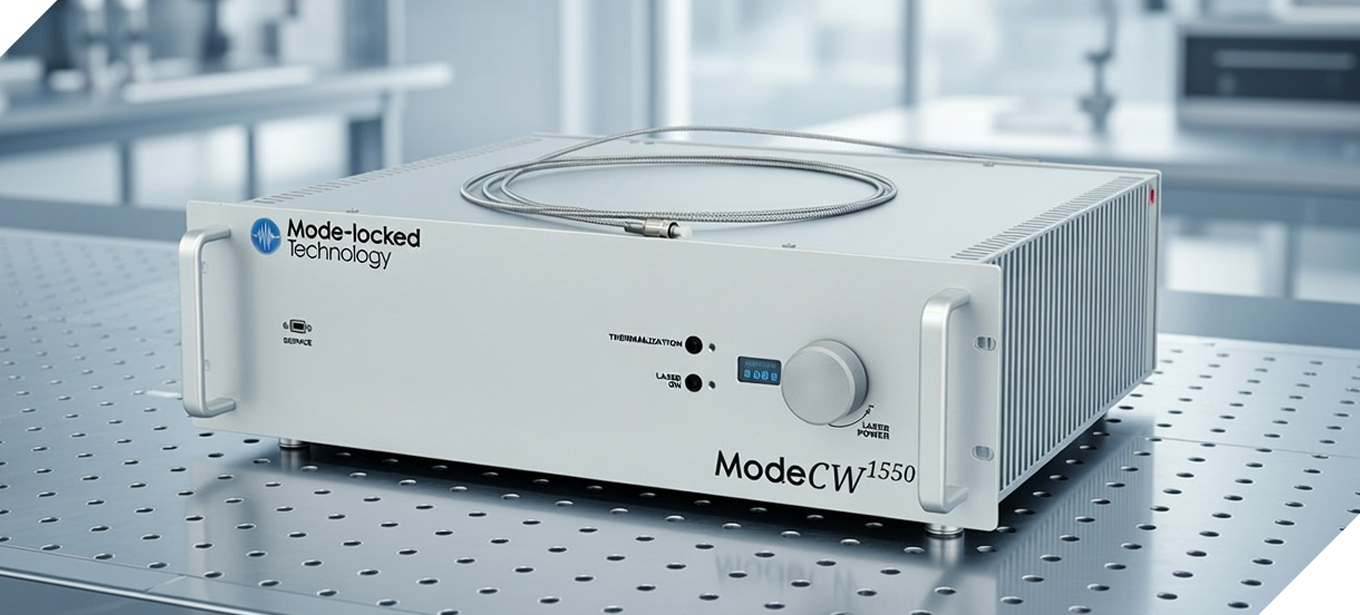

ModeCW is a turn-key operated, high-power and low-noise MOPA (Master Oscillator Power Amplifier) laser at 1560 nm wavelength. It is a one-box solution that includes control electronics, power supply and the optical engine. Ideal for laboratory experimental research in metrology, atom cooling, spectroscopy. A perfect source for pumping of Cr:ZnS/Se oscillators.
- Integrated single-frequency seed source
- Linear polarization, excellent single-mode beam
- High output power (up to 6W)
- Excellent noise properties (integrated RIN lower than 0.008% in the 1 Hz – 1 MHz range)
- Maintenance-free, button-operated
- Single-box solution, 19” rack 3U
| Central wavelength | Between 1550 – 1570 nm |
| Output type | Fiber output, PM1550 Panda, FC/APC connector. End-cap output upon request. Typical fiber length between 1-3 m |
| Output power | Up to 6W CW, adjustable (300mW – 6W) |
| Polarization | Linear, PER > 25 dB |
| Additional inputs/outputs | Monitor output (> 3 mW, FC/APC), additional outputs possible upon request |
| RS232 port for communication and remote control | |
| Output power stability | < 0.1% rms over 20 hours |
| Dimensions | 485x330x135mm (WxLxH), single-box solution, 19″ Rack 3U |
-
Fig. 1. Optical spectrum of the ModeCW1560 output.
-
Fig. 2. Long-term output power (over 12 hours) of the ModeCW1560.
-
Fig. 3. Relative intensity noise (RIN) of the ModeCW1560 at different output power levels.
-
