Low-noise laser diode driver

Product

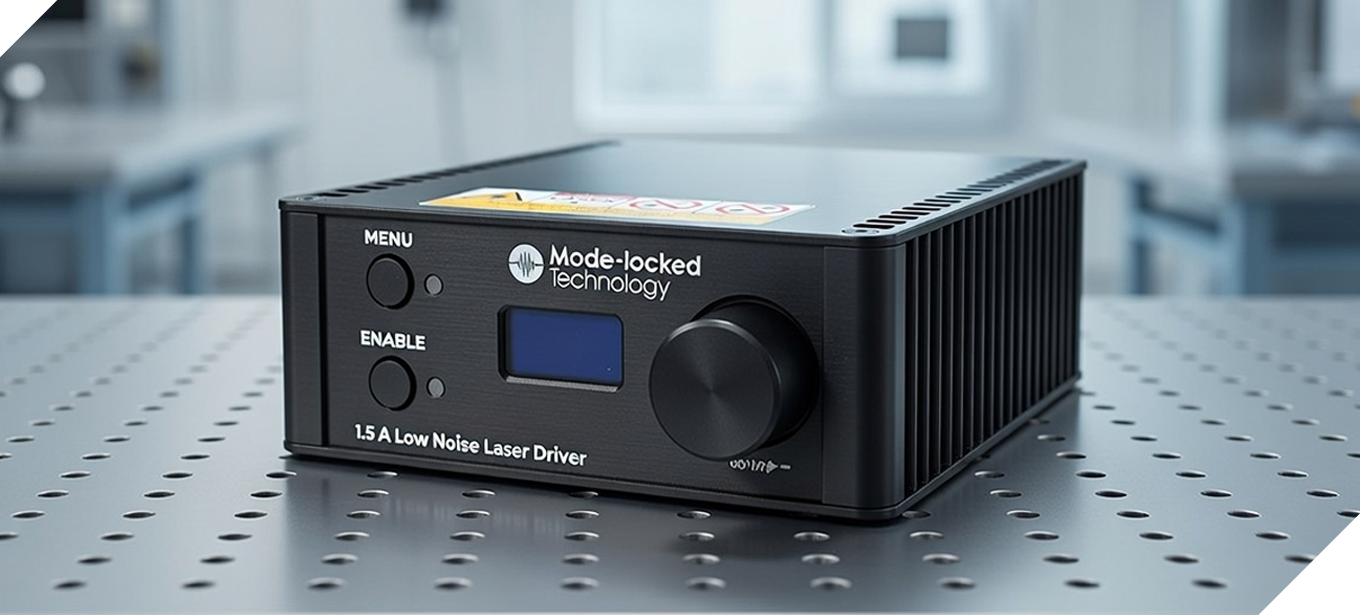

The ModeLDC is a low-noise, all-in-one current source and temperature controller for laser diodes. It is available in two versions: with a maximum drive current of up to 1.5A (for 14-pin and 10-pin butterfly-packaged lasers) and a current of up to 15A for high-power laser diodes.

Contact us

  • Integrated mounts for various laser diodes
  • Low-noise current source
  • Easy to use, with knob adjustment of the current
  • Currents up to 1.5A or 15A
  • Excellent temperature stability of 0.002oC
  • Compact housing (180x130x50 mm)
  • LabVIEW-based software package available
ModeLDC1A5 ModeLDC15A
Current control range 0 – 1.5 A 0 – 15A
Compliance voltage 2.5V 9V
Current setting resolution 100 µA via front panel knob

25 µA via remote control

 10 mA
Current setting Accuracy ± (0.1% + 300 µA) ± (1% + 30 mA)
Noise and ripple RMS* 3.5 µA full modulation bandwidth

0.8 µA with noise reduction filter

 30 µA
Noise Density (typ.) @ 1 kHz 5 nA/Hz1/2 200 nA/Hz1/2
Temperature coefficient < 10 ppm/K < 100 ppm/K
Current limit setting range 0.5mA to 1.5A 0mA to 15A
Current limit setting accuracy 1% 5%
Modulation bandwidth (3 dB) DC to 300 kHz full bandwidth

DC to 10 kHz with noise reduction filter

 DC to 50 kHz
Modulation coefficient 10 / 20 / 50 / 100 mA/V (selectable)
TEC current control range -1.8A / +1.8A 10A max.
TEC compliance voltage 5.5V 12V
TEC Maximum output power 10.5 W 120W
TEC Current resolution 1 mA 1 mA
NTC Thermistor resistance measurement range 100Ω – 500kΩ 100Ω – 500kΩ
NTC Sensor temperature control range -40oC to +180oC 40oC to +180oC
Temperature resolution (at 25oC) 0.002oC 0.01oC
Resistance resolution (at 25oC) 0.9Ω 10Ω
Temperature accuracy 0.5% 2%
Temperature setting range -10oC to +60oC 0oC to +60oC

Application notes - scientific publications

[1] Philipp Steinleitner, Nathalie Nagl, Maciej Kowalczyk, Jinwei Zhang, Vladimir Pervak, Christina Hofer, Arkadiusz Hudzikowski, Jarosław Sotor, Alexander Weigel, Ferenc Krausz, Ka Fai Mak, „Single-cycle infrared waveform control,” Nat. Photon. 16, 512–518 (2022),

[2] Maciej Kowalczyk, Nathalie Nagl, Philipp Steinleitner, Nicholas Karpowicz, Vladimir Pervak, Aleksander Głuszek, Arkadiusz Hudzikowski, Ferenc Krausz, Ka Fai Mak, and Alexander Weigel, „Ultra-CEP-stable single-cycle pulses at 2.2 µm,” Optica 10, 801-811 (2023),
